Window Hood | 1700W x 700D
Window Hood | 1700W x 700D
Surfmist / Dover White
Superior Screens Factory
12 Barrinia Street
Slacks Creek QLD 4127
Australia
Choose options

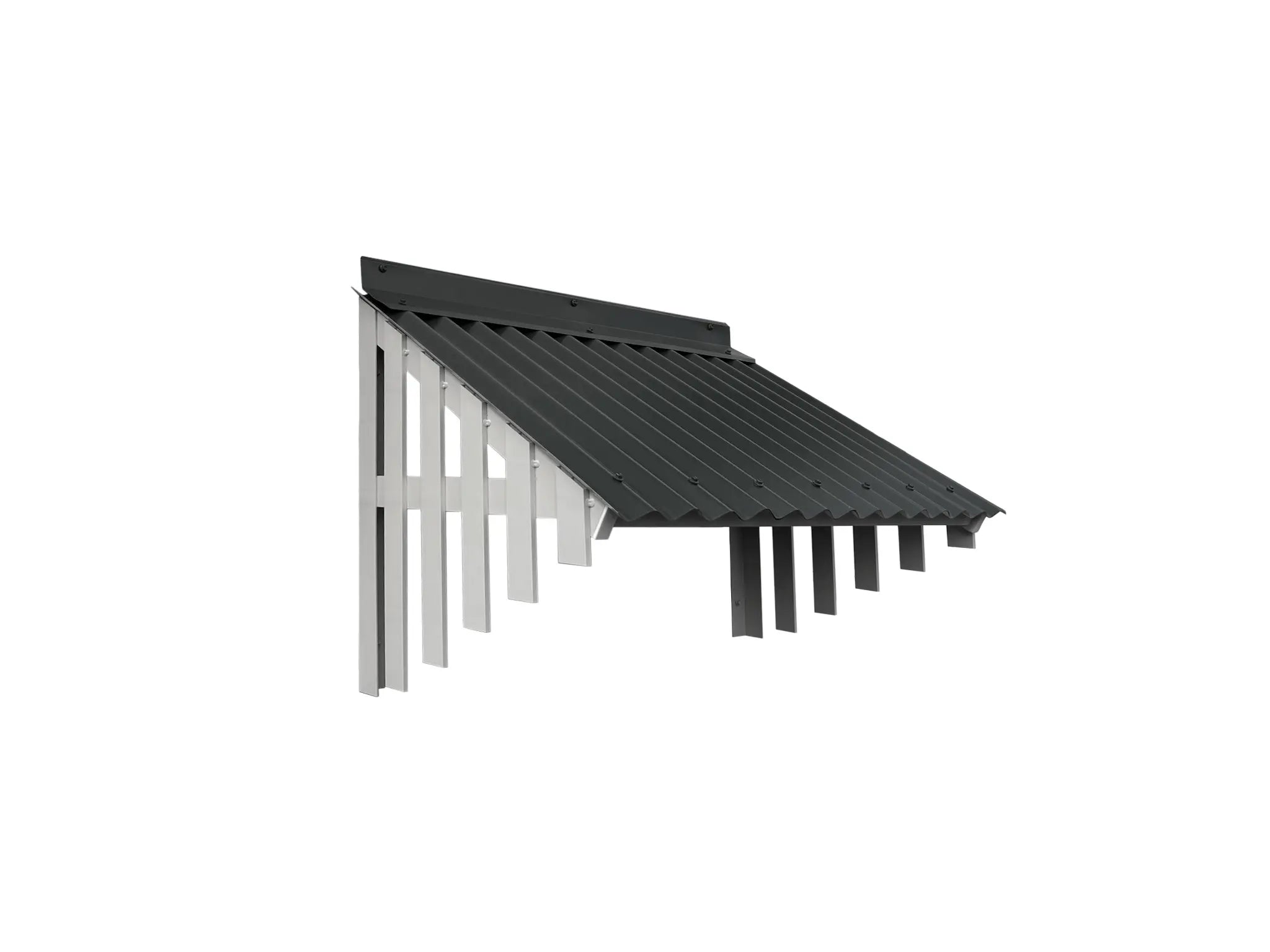

Add style and functionality with our modern take on colonial Window Hoods. Blends as perfectly with Queenslander and heritage style properties as it does with more modern residences. Quick turnaround for standard colours or customise for your unique look.
Gable rolls are an optional extra. Installation is easy to DIY.
Please specify which type of wall fixings required: masonry, wood or hebel.
Dimensions
|
ITEM |
DIMENSIONS |
FINISH |
MATERIAL |
QTY |
|---|---|---|---|---|
|
Brackets |
650Hx567W |
Powder Coat |
Aluminium 6060 T5 |
1 Pair |
|
Battens |
40x40x2 SQ Box |
Powder Coat |
Aluminium 6060 T5 |
2
|
|
Angles with 3 Holes |
40x40x3 |
Powder Coat |
Aluminium 6060 T5 |
4
|
|
Custom Orb Sheets |
700Lx762W |
COLORBOND® |
COLORBOND® Steel |
Round up width/762
|
|
Flashing 3 Fold |
82x52 x panel width |
COLORBOND® |
COLORBOND® Steel |
1
|
|
Gable Rolls (Add on) |
1800m Length |
COLORBOND® |
COLORBOND® Steel |
|
| Caps | 50x25 | Black | Nylon | 2 |
|
FIXINGS |
PURPOSE |
QTY |
|---|---|---|
|
T17-HX-14G-10x40mm |
Timber Screw Hex 14G- 10 x 40mm - Fixing Colonial Bracket to wall |
4 |
|
MQ8x40 - Mungo 8x40 |
Use with Timber Screws if installing in masonry |
4 |
|
SD-HX-10-16x16, seal |
Self Drilling Hex Screw 10-16x16 with seal - Fixing rails to side Brackets |
12 |
|
SD-HX-12-14x35, seal |
Fixing Custom Orb to brackets & Battens - 5 across each batten |
10 per sheet |
|
T17-HX-14G-10x40mm |
Timber Screw Hex 14G- 10 x 40mm - Flashing to wall |
Every 4th rib
|
Product Information
Installation Guides
Care & Maintenance Guide
- Sales 98 | Product Care and Maintenance
COLOUR
Standard colour range is available off the shelf. Battens and Brackets are available in any custom powder coat colour in the Interpon or Dulux Range Roof Sheets and Flashing are limited to the COLORBOND® Steel "Roofing" Product Colour Range - pricing on application.
Please note; colour swatch is not 100% accurate and may vary when previewing on different monitors.
Window Hood Extras!
Add The Finishing Touch
COLORBOND Gable Rolls for Window Hoods
Minimal Maintenance
Made with durable COLORBOND® Steel and powder-coated aluminium which means no painting required and only an occasional wash down.
Passive Cooling
External awnings are superior for managing solar heat gain than traditional internal shade systems while also shading from interior UV damage to your furniture.
Customisable
We can manufacture your window hood to the specific size required or powder-coat your desired custom colour. Send us a Custom Quote request below.
