Slat Window Privacy Screen
Width
Height
Slat Window Privacy Screen
730 / 615 / pearl-white
Superior Screens Factory
12 Barrinia Street
Slacks Creek QLD 4127
Australia
Choose options
Width
Height
Width
Height

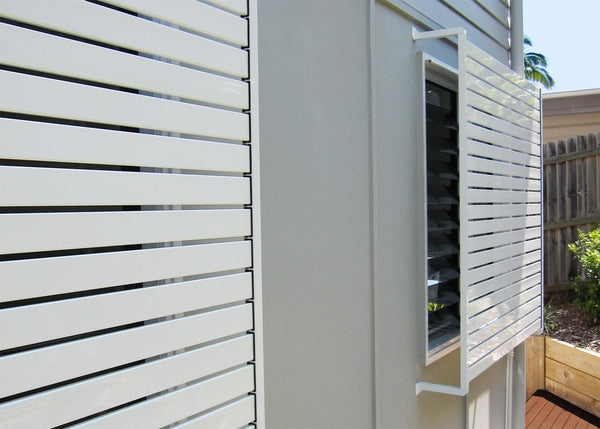

Clik’n’Fit® Slat Aluminium Window Privacy Screens will add style and functionality to your windows, allowing you to control the elements and achieve a new level of comfort. DIY and simple to install, our window screens come in a range of colours, styles, and sizes to suit your decor. The perfect solution for meeting BASIX and council privacy regulations.
IMPORTANT NOTE: The screen width size must be 130mm wider than the outside edge of the window frame.
DIMENSIONS
Height: 615mm; 955mm; 1210mm; 1550mm; 1805mm
Widths:
Spacing:
Bracket Standoff:
Style: Slat
COMPONENTS
MATERIALS
Aluminium 6063 T5
UV rated Polypropylene locking plugs
Forged aluminium brackets
IMPORTANT NOTE: The screen width size must be 130mm wider than the outside edge of the window frame
CUSTOM SCREEN
Please click on the "Get a Custom Quote" Button and fill in the Quote Request Form with your custom dimensions and requests.
To understand the technical specification and limitations of our product, please refer to our Clik'n'Fit Window Privacy Screens Sales Guide for more information.
COLOUR
Standard colour range is available off the shelf. Also available in any custom powder coat colour in the Interpon or Dulux Range - pricing on application.
Please note; colour swatch is not 100% accurate and may vary when previewing on different monitors.
The screen width size must be 130mm wider than the outside edge of the window frame.
Why Choose Window Privacy Screens?
Clik'n'Fit Window Privacy Screens
QUALITY + DURABILITY
Clik’n’Fit® is a patented slat & louvre system exclusive to Superior Screens. It's termite resistant, extremely durable and corrosion resistant. Trust in the quality of a 100% Australian made product.
SIT BACK AND RELAX
No maintenance apart from a regular wash, No painting or touch ups. Easy assembly and fast installation with all your fixings supplied. Here is our super easy Care & Maintenance Guide
MAKE IT YOUR STYLE
For a quick solution choose from our range of standard colours & sizes that fit all standard window sizes. For a specific look, customise the size, gap and colour with the help of our Sales Team.
WINDOW PRIVACY SCREENS FAQ
What size window screen will fit my window?
Our Slat & Louvre Window Screens use different brackets that require different internal spans. Please refer to the info below.
SLAT WINDOW SCREEN
Required Width = (Outside Edge to Outside Edge of Window Frame) + 150mm. This will give a bolting point of approximately 50mm from the edge of the window using the Standard 325mm Wall Bracket.
LOUVRE WINDOW SCREEN
Required Width = (Outside Edge to Outside Edge of Window Frame) + 130mm. This will give a bolting point of approximately 50mm from the edge of the window using the Standard 250mm Wall Bracket.
What is the maximum width of the screen?
MAXIMUM WIDTHS
Up to 4000mm. Centre Vertical Slat (CVS) required every 2000mm for 65x16 slats. CVS required every 1500mm for 50x10mm or 75x10mm slat profiles.
Up to 2200mm before an additional bracket (centre bracket routed both sides) is required. 2x Brackets (L+R) = Up to 2200mm; 3x Brackets (L+C+R) = 2200 to 4400mm; 4x Brackets (L+C+C+R) = 4400 to 6500mm
What is the maximum height of the screen?
MAXIMUM HEIGHTS
Up to 2400mm
Up to 2400mm
How wide is the spacing gap between slats?
For Slat Window Screens: Standard spacing is 20mm.
For Louvre Window Screens: Standard spacing is 10mm.
Custom spacing available as required.
What slat profiles are available?
For Slat Window Screens: Standard panels use 65x16mm Slat. 50x10mm Slat or 75x10mm slat available upon request
For Louvre Window Screens: 65x16 Slat only
What is the bracket standoff?
The Standard Slat wall bracket is 250mm long with a 225mm standoff from the outside wall to the back of the panel.
The Standard Louvre wall bracket is 325mm long with a 250mm standoff from the wall to the back of the panel.
Custom standoff dimensions are available between 100-600mm.
