Add style and functionality with our modern take on colonial Window Hoods. Blends as perfectly with Queenslander and heritage style properties as it does with more modern residences. Quick turnaround for standard colours or customise for your unique look.
Gable rolls are an optional extra. Installation is easy to DIY.
Please specify which type of wall fixings required: masonry, wood or hebel.
DIMENSIONS
Depth/Projection:
Lengths: 1100mm, 1400mm, 1700mm, 2000mm, 2300mm, 2600mm
Height: 645mm (Not Including Roofing Sheet & Flashing)
Hood Angle: 60°
INTERNAL SPAN
The Inside Width = (Window Hood Total Length – 100mm)
Product Information
Installation Guides
Care & Maintenance Guide
- Sales 98 | Product Care and Maintenance
|
ITEM |
DIMENSIONS |
MATERIAL |
QTY |
|---|---|---|---|
|
Brackets |
650H x 567W |
Powder Coated Aluminium 6060 T5 |
1 Pair |
|
Battens |
40x40x2 SQ Box |
Powder Coated Aluminium 6060 T5 |
2
|
|
Angles with 3 Holes |
40x40x3 |
Powder Coated Aluminium 6060 T5 |
4
|
|
Custom Orb Sheets |
700Lx762W |
COLORBOND® Steel |
Round up width/762
|
|
Flashing 3 Fold |
82x52 x panel width |
COLORBOND® Steel |
1
|
|
Gable Rolls (Add on) |
1800m Length |
COLORBOND® Steel |
|
| Caps | 50x25 | Nylon | 2 |
|
FIXINGS |
PURPOSE |
QTY |
|---|---|---|
|
T17-HX-14G-10x40mm |
Timber Screw Hex 14G- 10 x 40mm - Fixing Colonial Bracket to wall |
4 |
|
MQ8x40 - Mungo 8x40 |
Use with Timber Screws if installing in masonry |
4 |
|
SD-HX-10-16x16, seal |
Self Drilling Hex Screw 10-16x16 with seal - Fixing rails to side Brackets |
12 |
|
SD-HX-12-14x35, seal |
Fixing Custom Orb to brackets & Battens - 5 across each batten |
10 per sheet |
|
T17-HX-14G-10x40mm |
Timber Screw Hex 14G- 10 x 40mm - Flashing to wall |
Every 4th rib
|
COLOUR
Standard colour range is available off the shelf. Battens and Brackets are available in any custom powder coat colour in the Interpon or Dulux Range Roof Sheets and Flashing are limited to the COLORBOND® Steel "Roofing" Product Colour Range - pricing on application.
Please note; colour swatch is not 100% accurate and may vary when previewing on different monitors.
Window Hood Extras!
Add The Finishing Touch
COLORBOND Gable Rolls for Window Hoods
Minimal Maintenance
Made with durable COLORBOND® Steel and powder-coated aluminium which means no painting required and only an occasional wash down.
Passive Cooling
External awnings and window hoods are superior to traditional internal shade systems in managing solar heat gain than while also shading from interior UV damage to your furniture.
Customisable
We can manufacture your window hood to the specific size required or powder-coat your desired custom colour. Send us a Custom Quote request below.
The Finishing Touch
Window Awnings add visual interest to flat and boring homes while having the added benefit of cooling your home by reducing external heat gain.
This window hood can take looking post-war period homes from drab to fab with the heritage style aluminium brackets adding ornamental dimension and upping your curb appeal.

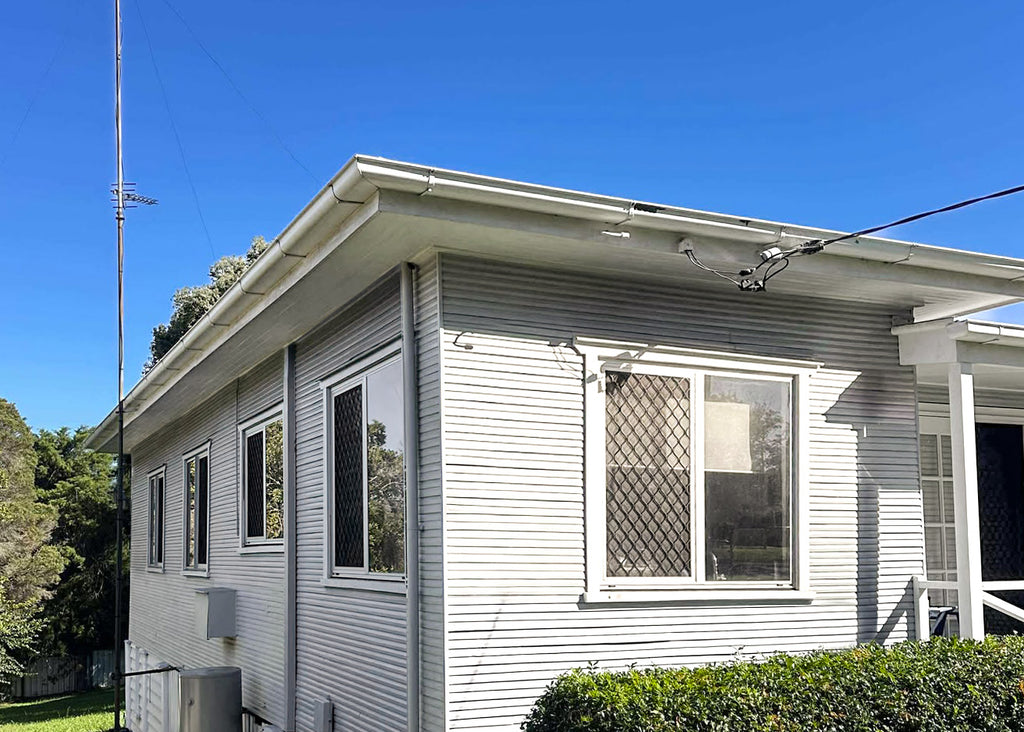

Before

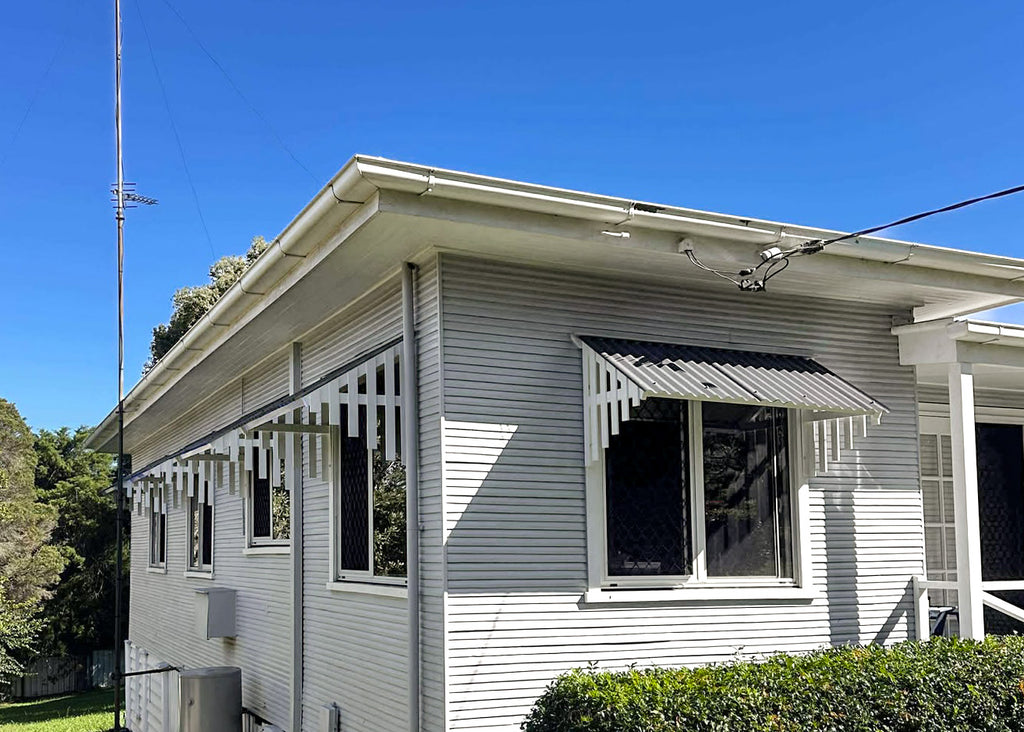

After

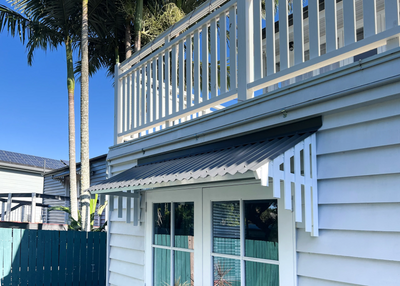

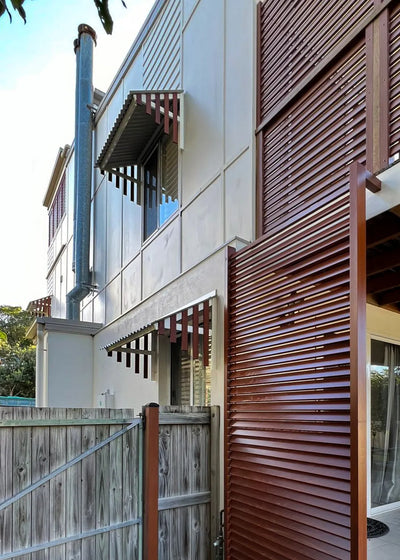

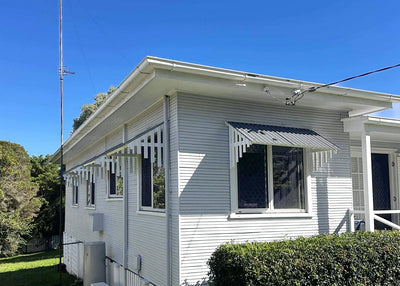

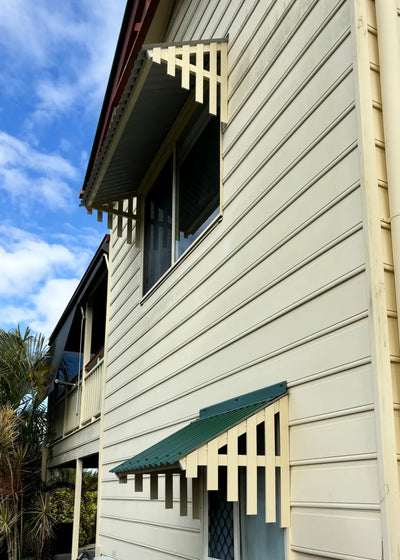

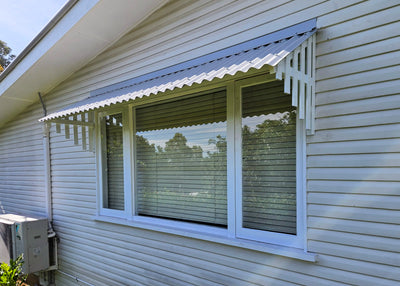

Window Hood GALLERY
Aluminium Brackets & Batten Colours
We stock our brackets in 3 standard colours; Pearl White Gloss & Surfmist® & Classic Cream®. Should you desire a different colour bracket or want to match the colour to your chosen COLORBOND® Roof Sheet, please request so in a custom quote.
Pearl White
Gloss FinishSurfmist®
Satin FinishClassic Cream®
Satin FinishPlease note; colour swatch is not 100% accurate and may vary when previewing on different monitors.
COLORBOND® Steel Colours
For Roofing & Flashing Colours
Dover White®
Satin FinishSurfmist®
Satin FinishClassic Cream®
Satin FinishPaperbark®
Satin FinishSoutherly®
Satin FinishShale Grey®
Satin FinishPale Eucalypt
Satin FinishCottage Green®
Satin FinishIronstone®
Satin FinishDeep Ocean®
Satin FinishBluegum®
Satin FinishBasalt
Satin FinishWindspray®
Satin FinishWoodland Grey®
Satin FinishMonument®
Satin FinishNight Sky®
Satin FinishDune®
Satin FinishGully®
Satin FinishJasper®
Satin FinishTerrain®
Satin FinishManor Red®
Satin FinishPlease note; colour swatch is not 100% accurate and may vary when previewing on different monitors.
Window Hood Specs
| MATERIAL | All Aluminium extrusions are 6060 or 6063 T5. Locking Plugs are made from UV rated Nylon. |
| MAXIMUM WIDTHS | Maximum Width of Window Hood is 3000mm |
| MINIMUM WIDTHS | Minimum Width of Window Hood is 750mm |
| PROJECTION | 600mm from Wall to point of Window Hood; Custom projection not available. |
| INTERNAL SPAN | The Inside Width = (Window Hood Total Length – 100mm) *Internal Span calculation is to determine what window size within the hood |
| HOOD BRACKET | Aluminium 6060 T5, Angle 50x50x3, Box 50x25x1.6SQ, Slat 50x10x1.2, Wt 3.5kg (pair) |
| BATTENS | Aluminium 6060 T5, Box 40x40x2SQ, 0.82kg/m |
| ROOF SHEETS | COLORBOND® Custom Orb Sheet with Thermatech Technology 0.42mm 2.25kg/sheet. COLORBOND®steel is pre-painted steel for exterior roofing and walling. Thermatech technology reflects more of the sun’s heat on hot, sunny days (not available in Night Sky®) The painting complies with AS/NZS 2728 and the steel base is an aluminium/zinc alloy coated steel complying with AS 1397.C For engineering specification, refer to Lysaght’s CUSTOM ORB® & CUSTOM BLUE ORB® Design & Installation Guide |
| FLASHING | COLORBOND® Sheet 0.55mm, 3 fold, 0.67kg/m If using Gable Rolls, the Flashing length will be 100mm longer to better match. |
| ANGLES | Aluminium 6060 T5, 40x40x3, 3 Holes each side, welded or screwed to bracket |
| GABLE ROLL | COLORBOND® Steel 0.55mm BMT, 50x1800mm, 1.3kg |
